LOH: 11.99m
Deadweight : 8 tonnes
Gross Tonnage: 14
The Little One that could.

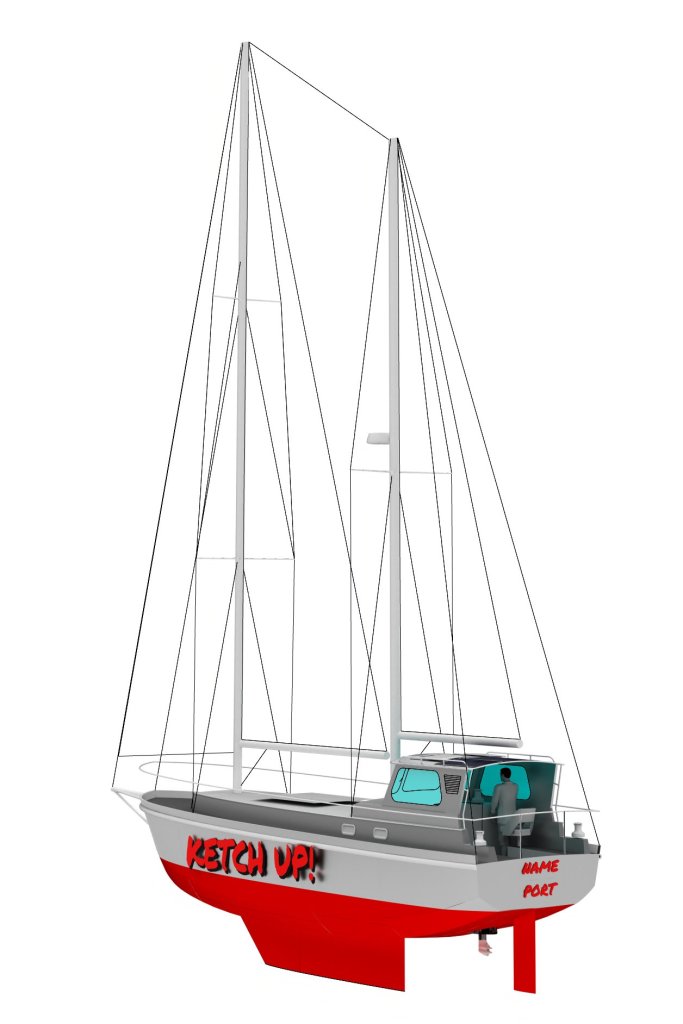

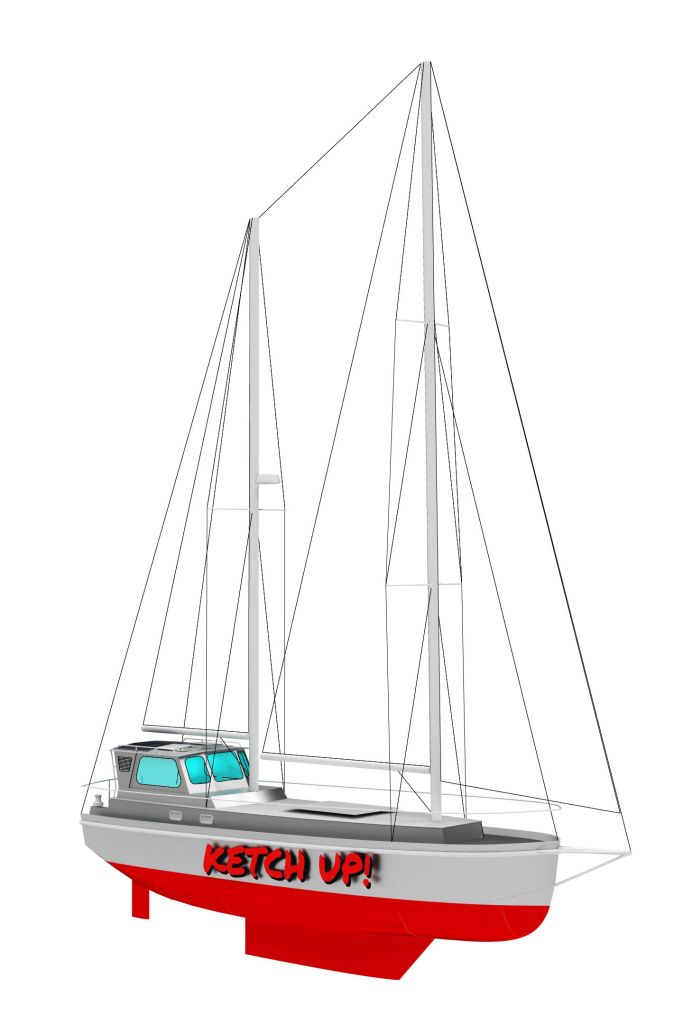

Designed, in collaboration with Steven Woods from Bay State Sail Freight for the general routes. The Design is laid out for sailing in all conditions. A Ketch Rig with Tall main mast and smaller mizzen and a hydrodynamic shaped rudder and keel provide for a versatile sail plan for all conditions and points of sail. A fairly narrow beam for reduced resistance and improved sea motions. Minimized accommodations and semi enclosed deckhouse provide better aerodynamic performance and reduces weather helm. This vessel is designed to CE-A requirements.
Exterior

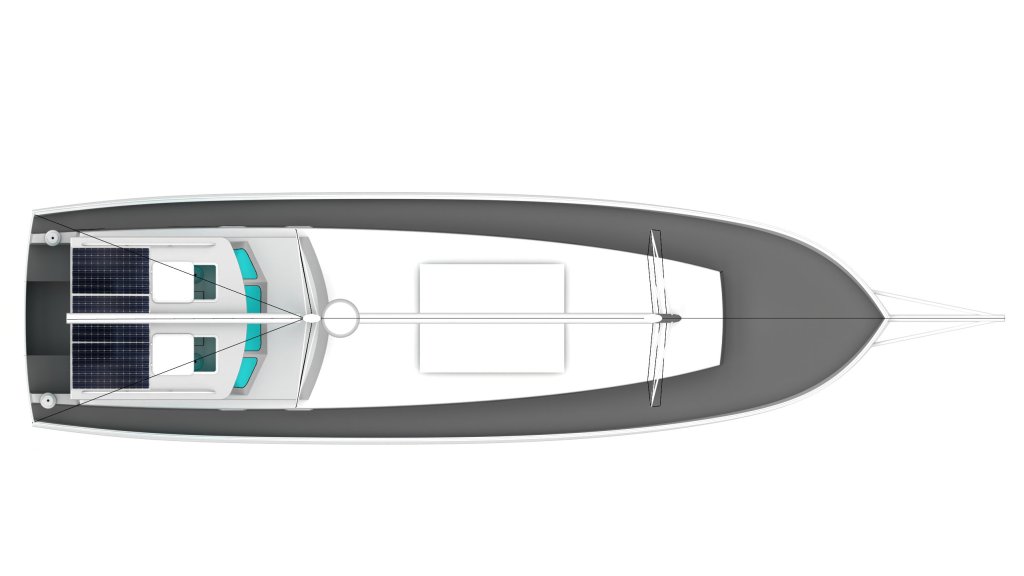

DECK LAYOUT
The main deck features two deck hatches which give access to the Main and Forward Cargo holds. Forward of the cargo holds is a large Bosun store which houses the second generator and has space for storage of sail and other gear.
CARGO GEAR
The vessel is fitted with a single Derrick style crane with dedicated cargo boom which is powered by high speed hydraulic winches. A control console on the main deck provides line of sight and easy communication during cargo operations.
Accomodation

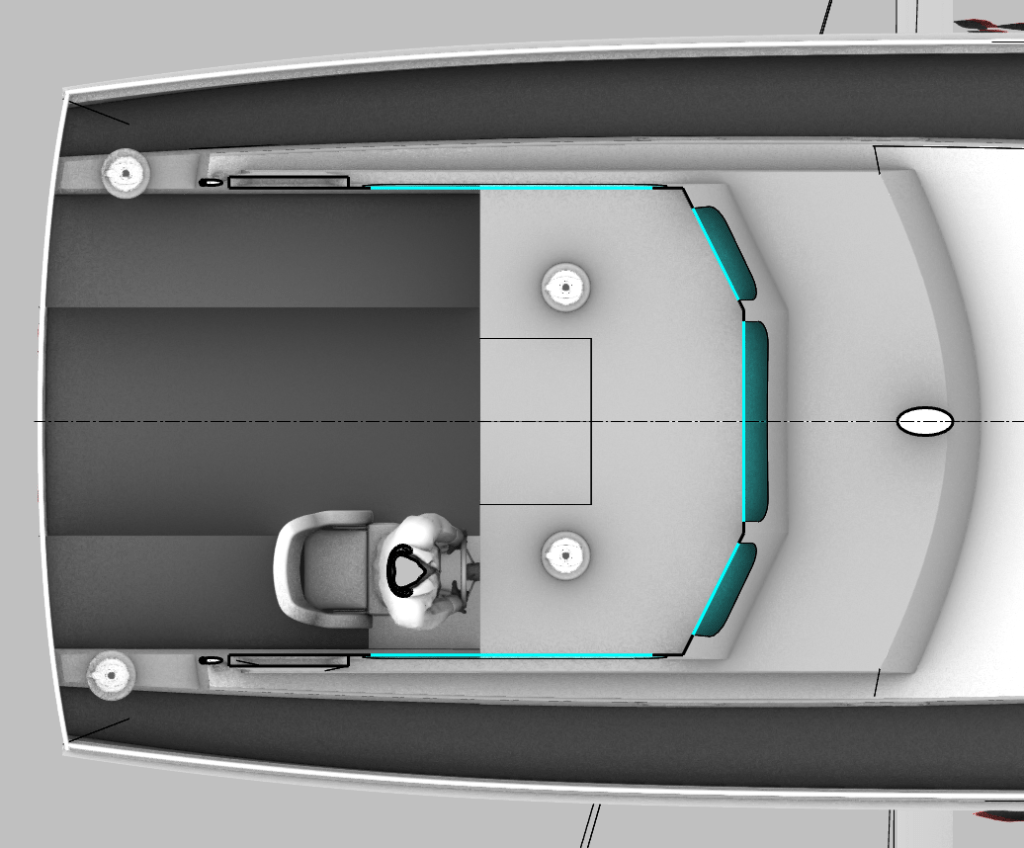

WHEELHOUSE
The semi-enclosed wheelhouse is positioned on the aft of the vessel and has a standing / sitting chair for the helmsman on the watch. All lines are led aft and teh vessel can be fully controlled from this wheelhouse.The steering is by way of hydraulic steering with a wheel at the control position. A autopilot will be integrated in the steering system. All sails are furled. Additional seating on the benches which also provide a good knee support for controlling the winches.
ACCOMODATION
Altough teh vessel has CE-A rating, the vessel is mainly designed for shorter Coastal trips the accomodation is limited but practical.
The Lower Deck features the following:
- a Galley with ample storage.
- 2 Crew cabins (1 person each)
- Fold up Table with pivoting chairs
- A Toilet / shower unit
- Desk with pivoting chair.
Data & Technics
SPECIFICATIONS
Length over all: 13.6 m
Length over deck: 11.9 m
Length waterline: 11.65 m
Beam moulded: 3.35 m
Depth: 1.92 m
Draft Hull: 1.00 m
Draft: 1.90m
Displacement: 23 tonnes
Cargo Volume: 18 m3
GT (approx.): 14
DWT: 8 tonnes
Sail Area: 80 m2
MAIN SYSTEMS
In general there a few systems on board to reduce cost and reduce maintenance requirements. The following main systems are found:
A 50hp 4 cylinder inboard Diesel auxilary engine with sail drive to get into and out of port.
Cargo handling system with a SWL of 250kg controlled by electric high speed winches.
Electronics package with navigation and radar.
